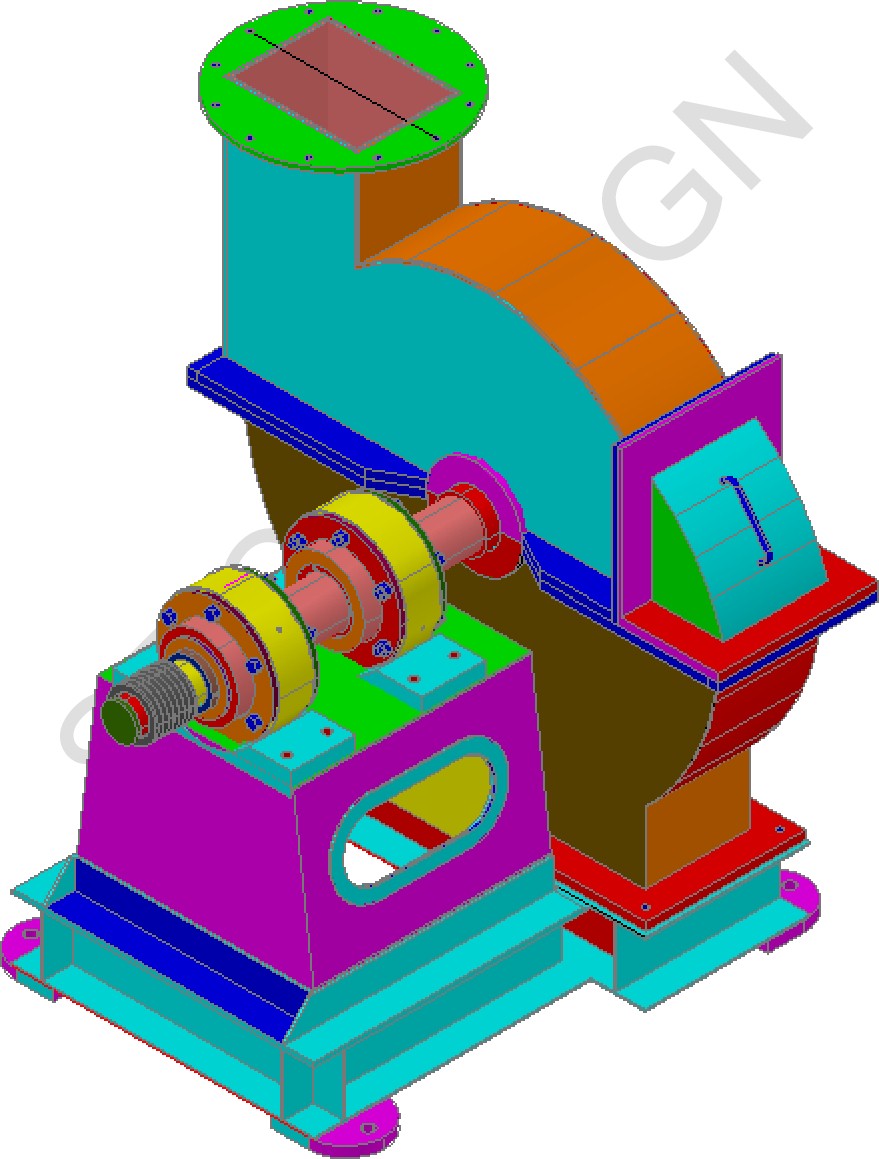

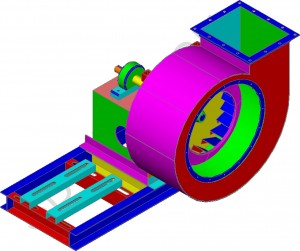

Centrifugal Blower























Centrifugal Blower Specifications:

FAN DUTYFor handling Air, Hot Flue Gas, Dust, Fibrous Material and Corrosive Gases.
MATERIAL OF CONSTRUCTION
Carbon Steel , Stainless Steel , Aluminium , Rubber Lined , Epoxy Painted , Chlorinated Rubber Painted .
CONSTRUCTIONCorrosion and Acid Resistant Fans, Wear Protected , Explosion Protected, Gas Tight Fans, Poisonous and Risky Gas Fans.
BEARINGSBall Bearings, Roller Bearings, Oil Lubricated Bearings, Grease Lubricated Bearings, Water Cooled Bearings.
SHAFT SEALS
Metal Asbestos Seal, Labirinth Seals, Packed Stuffing Box, Stuffing Box with Intermediate Pressure Relief Chamber.
HOUSINGSteel Fabricated welded construction braced with steel flats and angles. Split casing can be provided for large sizes. Inspection door and drain plug can be provided.
IMPELLERImpeller can be made in Light , Medium and Heavy construction Class I , II and III. Steel or Cast Iron Hub will be Welded, Bolted or Riveted. Impeller will be Statically and Dynamically Balanced .
SHAFTShaft are of EN – 8 / SS316 / SS304 properly sized to keep away from critical speed.
BEARING LIFE
Bearings are designed for long life . This life can be attained when properly lubricated, kept clean, tensioning belts correctly and keeping Impeller clean and balanced. Smaller ‘V’ Pulleys and improper belt tensions reduces the life considerably. Proper care and Lubrication increases the life beyond this.
VIBRATIONSVibration isolators and flexible connections at inlet and outlet can minimize transmission of vibration and noise to building structure and ducts .

Designed By: Rass Biosolution Pvt. Ltd.
